Are you looking for the absolute best injectors you can buy?
Whether a tuner, or an end user the best thing you can do is educate yourself.

What qualities and specifications define "the best injector?" What injector data do you absolutely need to insure a consistent tune? How will the dynamic response of the injector affect the idle quality and high duty cycle performance?

We offer a tremendous amount of technical information and data with our products to help you answer these questions.

Take some time to look around and we think our quality and unmatched technical expertise will win you over.

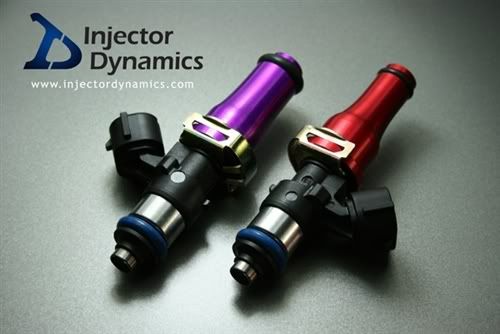

We currently offer 4 models - Full specifications are available by clicking on the model number



ID725 - Nominal Flow Rate - 715cc/min

ID850 - Nominal Flow Rate - 885cc/min

ID1000 - Nominal Flow Rate - 1015cc/min

ID2000 - Nominal Flow Rate - 2225cc/min

Fitment

Application specific fitment is handled with the addition of various top hat adapters, and occasional machining operations. Standard fitment exists for most popular applications, and new fitments will be developed on request. All standard lengths and fuel rail bores are currently accomodated.

Dynamically Matched Sets

We only sell matched sets, and within each set the dynamic flow rate (slope) will vary no more than +/- 1%, and the dead time (offset) will vary no more than +/- 20 microseconds which is equivalent to +/- 1% at a pulsewidth of 2 milliseconds.

It is this dynamic flow matching across the pulsewidth range that separates the men from the boys.

Tight matching at low pulsewidths allows the use of high flow rate injectors without sacrificing idle, off idle, and cruise quality while the matched offsets insure that the individual injectors respond properly to atmoshperic and voltage compensations built in to the ECU.

Full Dynamic Characterization

We provide the data that you and your ECU need to do the job properly.

Flow and offset values are provided from 8 to 16 volts across the full pressure range in 5 psi increments.

Additionally, we publish full dynamic characterization curves: Raw flow vs pulsewidth, offset corrected flow, linearity curves, and pressure sensitivity plots.



Please contact us for unbeatable pricing on these products, also keep in mind we will match or beat any competitors pricing on so called "package deals"!

: Send us a PM|||||
: MoAtMAP|||||
: 1-888-MAPERFORMANCE x 114|||||
: [email protected]

|||||||||||||||

Like us? Tell us and everybody else about it!

||||||||||




·
Registered
Joined
·
5,278 Posts
Fantastic Injectors :smthumbup


·
Formerly known as DazK-IV
Joined
·
2,120 Posts
Possibly me too for 1000's as my car's booked in to have them done on 21/09 - can you also please PM price for non-GB ... Cheers, Daz


·
Registered
Joined
·
894 Posts
I'd be interested in a GB :smthumbup
