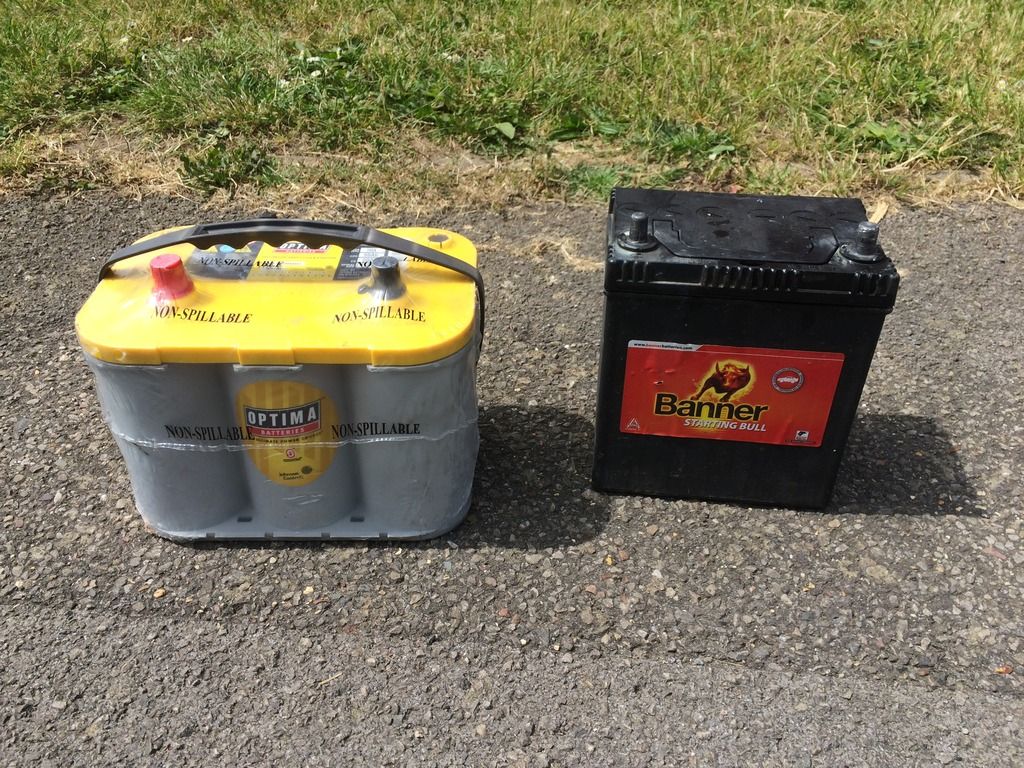

After owning a yellow top for 5 months and it sitting in my garage i finally got round to fitting it today but it wasn't without its trials namely its much bigger and doesn't fit with the hard pipes installed!


I prefer to do things in a way that it can be reversed should the need arise so the next issue was what to do with this

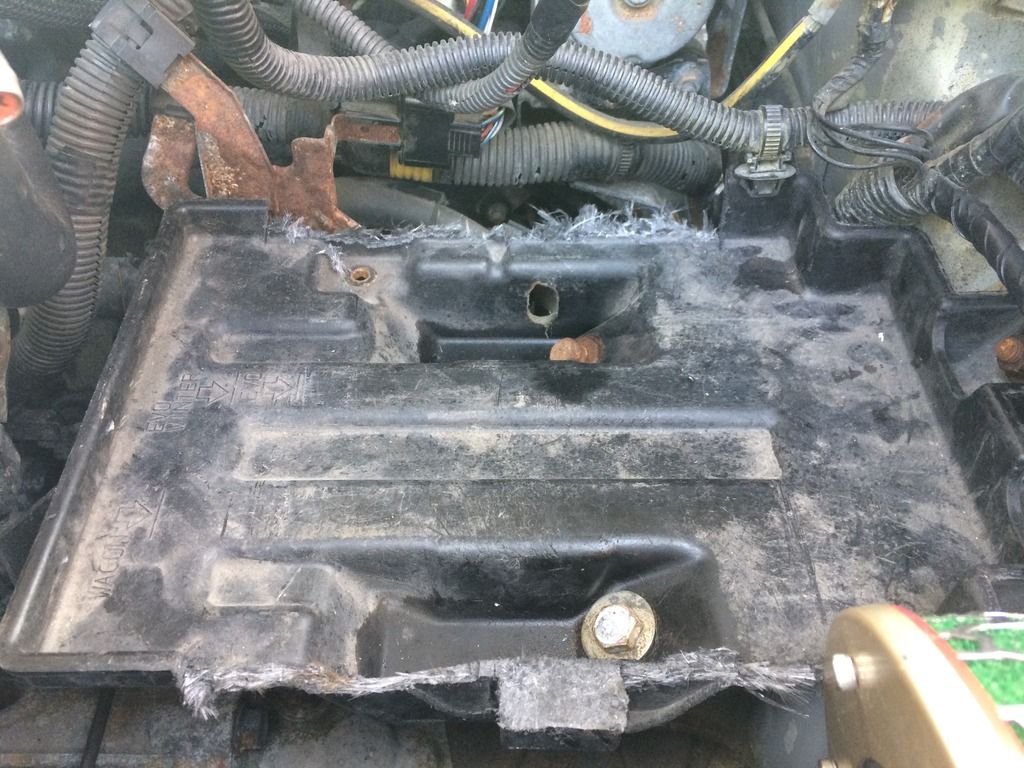

Here's how i overcome both issues, i tunr the battery 90 degrees but had to trim the sides of the battery tray to do so

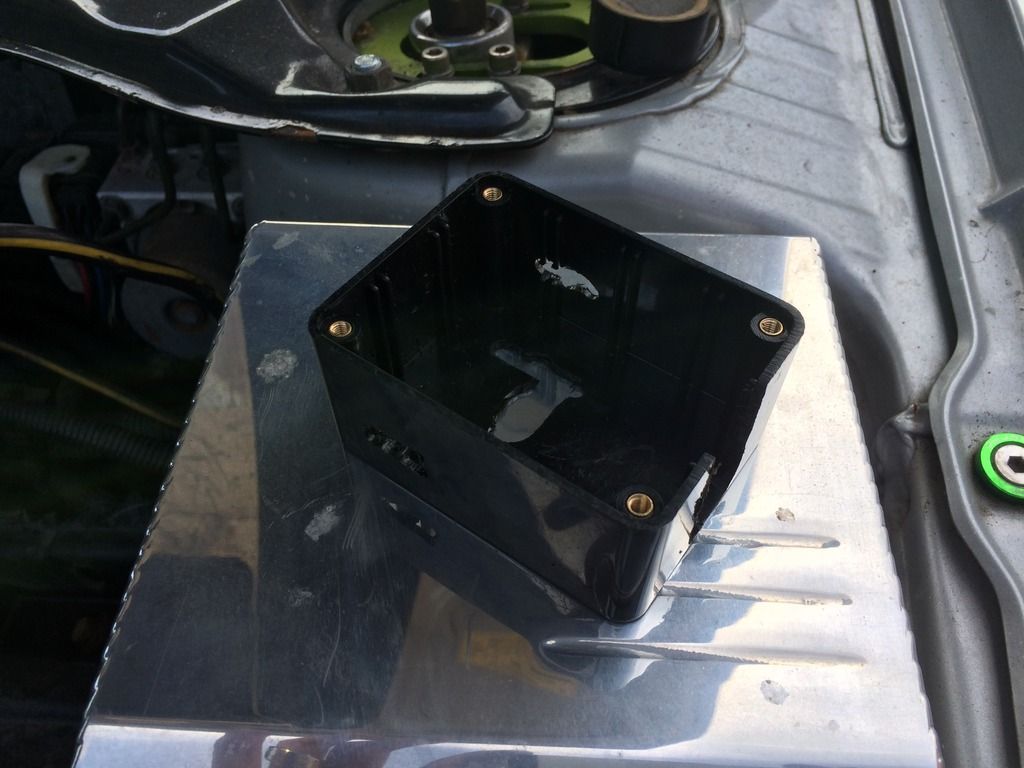

Then i customised a a box i bought from maplin


And refitted the positive distribution inside it



Tucked it under the support bar and earthed it to an existing earth point but will find a better chassis point tomorrow


She fires in a heart beat and no issues listing to radio for more than 2 mins with engine off :-D Win


·
Registered
Joined
·
2,498 Posts

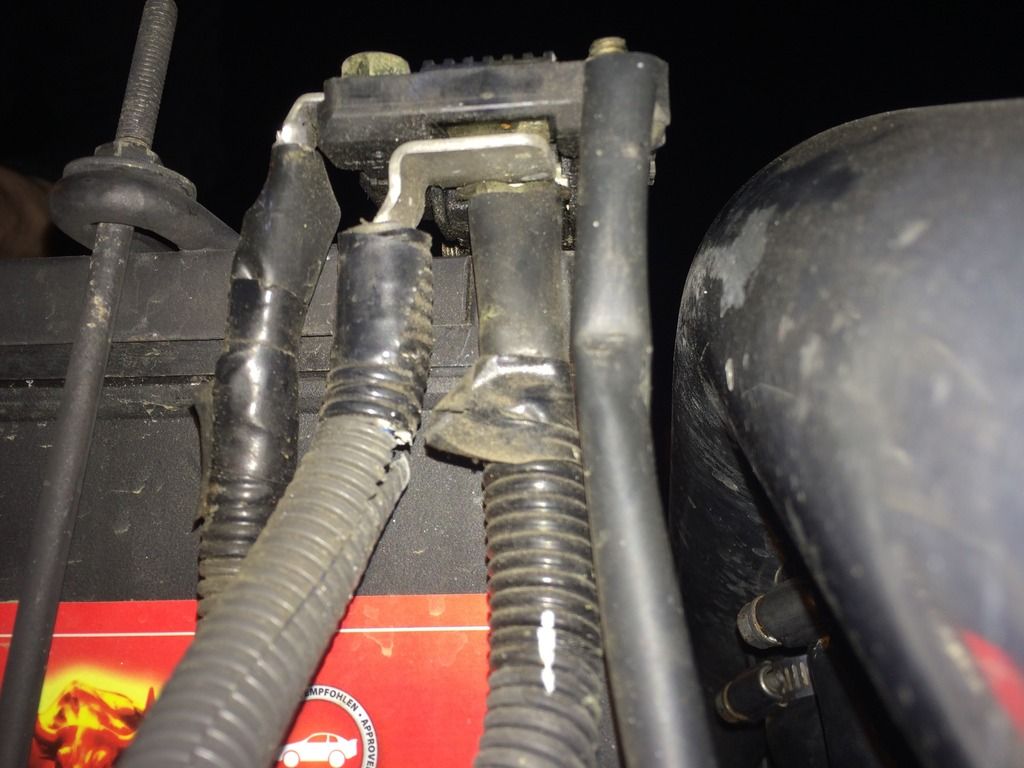

Yep I know I always try and leave at least 10mm from the engine and pipework or any thing that could move about. That looks like it's squashed between the battery and inlet pipe


·
Premium Member
Joined
·
85 Posts
Discussion Starter · #6 ·
Just wanted to finish the thread off with the finished product end results, all cables out of harms way :-D
